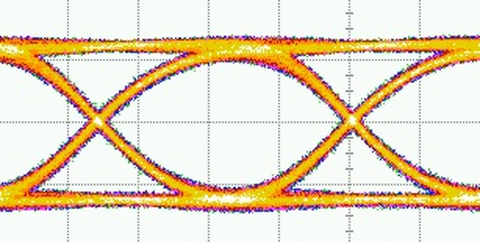

Output Eye Diagram Pulse Pattern Generators

Broadband pulse pattern generators for hardware-based pseudo random binary sequences (PRBS) and memory-based user programmable bit patterns at data rates between 10 Mbps and 56 Gbps. Complete bit error rate tester (BERT) in combination with a Sympuls error analyzer. The separately available amplifier and multiplexer modules allow to increase the output amplitude and extend the bitrate beyond 100 Gbps. Available as single-channel or mult-channel devices with up to 8 synchronous, but independently programmable output channels for a wide range of test and measurement applications, e.g. OC-192 / STM64, OC-768 / STM 256.

Type Data Rate Patterns Data Outputs (NRZ, /NRZ) User Interface Data Sheet
min max Pattern Memory PRBS 2n-1 Amplitude Offset Connector
BPG 56G 1 GBit/s 56 GBit/s 512 MBit n= 7, 9, 11, 15, 23, 31 0.2 ... 0.6Vpp - 50 Ω 2.4mm Front Panel,
USB		 PDF Icon
BPG 40G 1 GBit/s 44 GBit/s 512 MBit n= 7, 9, 11, 15, 23, 31 0.4 ... 0.6Vpp - 50 Ω 2.92mm Front Panel,
USB		 PDF Icon
BPG 32G 0.5 GBit/s 32 GBit/s 512 MBit n= 7, 9, 11, 15, 23, 31 0.4 ... 0.6Vpp - 50 Ω 2.92mm Front Panel,
USB		 PDF Icon
BPG 28G 0.5 GBit/s 28 GBit/s 512 MBit n= 7, 9, 11, 15, 23, 31 0.4 ... 0.6Vpp - 50 Ω SMA Front Panel,
USB		 PDF Icon
BPG 12G 5 MBit/s 12 GBit/s 128 MBit n= 7, 9, 11, 15, 23, 31 0.25 ... 1.2Vpp Optional 50 Ω SMA Front Panel,
USB		 PDF Icon
PAT 5000 10 MBit/s 5 GBit/s 16 MBit n= 7, 9, 11, 15, 23, 31 0.5 ... 1.0Vpp -0.5 ... 0.5V 50 Ω SMA Front Panel,
USB		 PDF Icon

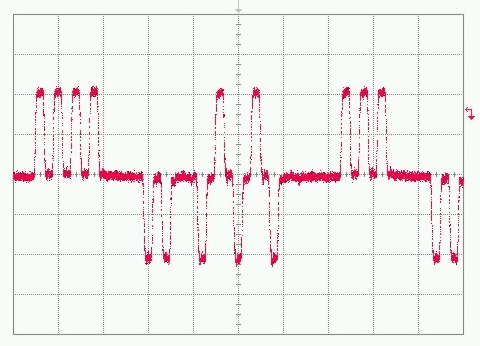

Ternary Pulse Pattern Ternary Pattern Generators (3-PAM)

Broadband test generators for ternary signals at symbol rates between 100 MBaud and 20 GBaud. Return-to-zero (RZ) output signal with independently adjustable amplitudes of positive and negative pulses. Freely programmable pattern memory for up to 512 million symbols.

Type Channels Symbol Rate Symbols Pattern Memory Data Outputs (RZ, /RZ) User Interface Data Sheet
min max Amplitude Offset Connector
BPG 12G-TER 1 0.1 GBaud 6 GBaud 3 128 MBit
=64M symbols		 0.5Vpp ... 1.0Vpp - 50 Ω SMA Front Panel,
USB		 PDF Icon
BPG 30G-TER 1 0.5 GBaud 15 GBaud 3 512 MBit
=256M symbols		 0.2Vpp ... 0.5Vpp - 50 Ω 2.92mm Front Panel,
USB		 PDF Icon
BPG 30G-TERx8 1 0.5 GBaud 15 GBaud 3 512 MBit
=256M symbols		 0.2Vpp ... 0.5Vpp - 50 Ω 2.92mm Front Panel,
USB		 PDF Icon
BPG 40G-TER 1 0.5 GBaud 20 GBaud 3 512 MBit
=256M symbols		 0.15Vpp ... 0.28Vpp - 50 Ω 2.92mm Front Panel,
USB		 PDF Icon
BPG 2x40G-TER 2 0.5 GBaud 20 GBaud 3 512 MBit
=256M symbols		 0.15Vpp ... 0.28Vpp - 50 Ω 2.92mm Front Panel,
USB		 PDF Icon

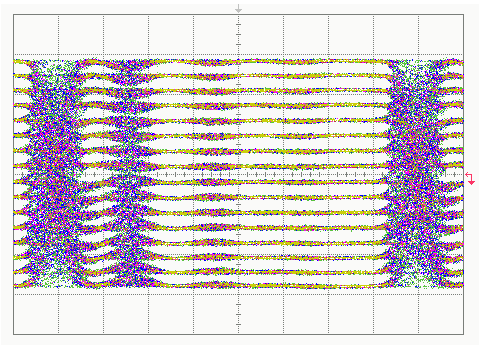

Multi-level Pattern 16-PAM Multi-Level Pattern Generator (16-PAM)
Multi-level generator for testing digital designs and components, e. g. laser diodes. The data outputs provide a multilevel signal code, i.e. the output signal can adopt one out of sixteen possible voltage values. Every code element therefore is encoded using four bits.
Type Symbol Rate Number of symbols Pattern Memory Data Outputs (NRZ, /NRZ) User Interface Data Sheet
min max Amplitude Offset Connector
PAT 1250-16 10 MBaud 1.25 GBaud 16 32 MBit
=8388608 Symbole		 1.2Vpp - 50 Ω SMA Front Panel,
USB		 PDF Icon

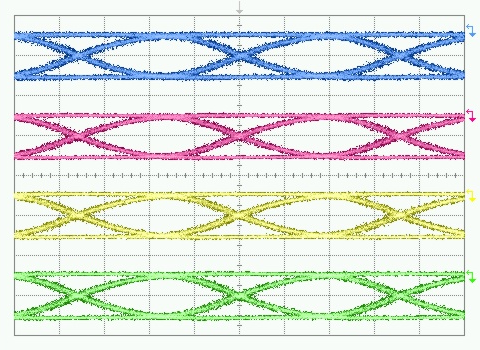

Multi-Channel Pattern Multi-Channel Pattern Generator
Pattern generators with up to 8 synchronous but independently programmable output channels. Each channel can be programmed to generate pseudo random binary sequences or user-defined pulse patterns up to 512 MBit length. The adjustable internal delay allows to compensate for differences in propagation time and synchronize the output signals at the device under test.
Type Number of Channels Data Rate Pattern Data Outputs (NRZ, /NRZ) User Interface Data Sheet
min max Pattern Memory PRBS 2n-1 Amplitude Offset Connector
BPG 8x32G 8 0.5 GBit/s 32 GBit/s 8x512 MBit n= 7, 9, 11, 15, 23, 31 0.4 ... 0.6Vpp - 50 Ω 2.92mm Front Panel,
USB		 PDF Icon
BPG 4x32G 4 0.5 GBit/s 32 GBit/s 4x512 MBit n= 7, 9, 11, 15, 23, 31 0.4 ... 0.6Vpp - 50 Ω 2.92mm Front Panel,
USB		 PDF Icon
BPG 2x32G 2 0.5 GBit/s 32 GBit/s 2x512 MBit n= 7, 9, 11, 15, 23, 31 0.4 ... 0.6Vpp - 50 Ω 2.92mm Front Panel,
USB		 PDF Icon
BPG 4x12G 4 5 MBit/s 12 GBit/s 4x128 MBit n= 7, 9, 11, 15, 23, 31 0.4 ... 0.6Vpp - 50 Ω SMA Front Panel,
USB		 PDF Icon
BPG 2x12G 2 5 MBit/s 12 GBit/s 2x128 MBit n= 7, 9, 11, 15, 23, 31 0.4 ... 0.6Vpp - 50 Ω SMA Front Panel,
USB		 PDF Icon

Other configurations available on request. Please do not hesitate to contact us!
