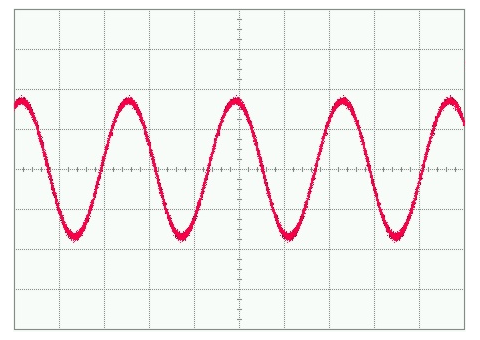

Clocksignal Clock Generators
Microwave clock generators for clock frequencies from 1 Hz to 20 GHz. Fast rise-times and low jitter make them ideal as clock source for all Sympuls pattern generators.
Type Frequency Resolution Rise/Fall Times Frequency Outputs User Interface Supply
min max Amplitude Offset Connectors
CG 3000 1 Hz 3 GHz 10-4 < 100 ps 1Vpp -1 V ... +1 V 50 Ω SMA USB USB
CG 12G 100 MHz 12 GHz 100 kHz < 25 ps 0.4 Vpp - 50 Ω SMA USB 230 V / 50 Hz
CG 20G 250 MHz 20 GHz 100 kHz < 25 ps 0.4 Vpp - 50 Ω 2.92mm USB 230 V / 50 Hz
CG 26G 250 MHz 26 GHz 1 mHz < 20 ps 0.4 Vpp - 50 Ω 2.92mm USB 230 V / 50 Hz

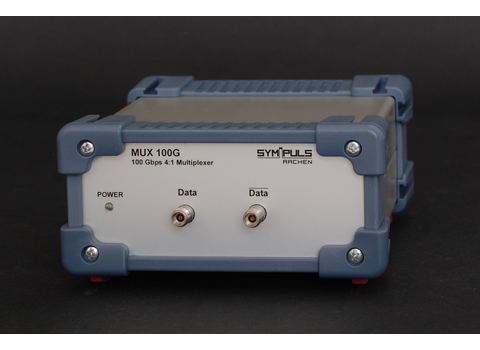

Multiplexer Multiplexers
Broadband multiplexers for the generation of serial data streams at bit rates beyond 100 GBit/s. A clock signal of half the frequency of the output data rate is needed for operation. All data inputs are single-ended and DC-coupled allowing the generation of arbitrary signals even with long sequences of consecutive zeros or ones.
Type Data Rate Data Inputs Clock Input Data Outputs (NRZ, /NRZ) Clock Outputs User Interface
min max Amplitude Connectors
MUX 100G 4 GBit/s 100 GBit/s 4x25 GBit/s,
single-ended,
DC-coupled		 50 GHz,
single-ended,
AC-coupled		 0.4 Vpp,
DC-coupled,
 50 Ω 1,85mm Data Rate/4,
0.5 Vpp
50 Ω 2.92mm		 USB
MUX 56G 1 GBit/s 56 GBit/s 2x28 GBit/s,
single-ended,
DC-coupled		 28 GHz,
single-ended,
AC-coupled		 0.4 Vpp...0.6 Vpp,
DC-coupled		 50 Ω 1.85mm - -
