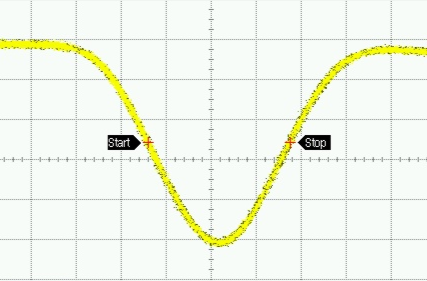

Generation of short positive or negative pulses with amplitudes up to 5V and adjustable pulse width (FWHM) between 40ps and 100ns. The output pulses are fired after a trigger event. The following trigger sources are available:

• Software trigger over graphical user interface or SCPI command for the generation of single pulses.
• External trigger input with adjustable trigger threshold and selection of the active trigger edge.
• Internal trigger generator with a repetition rate between 1μs und 1s and a resolution of 1 μs

Typ	Pulse Width		Pulse Trigger Repetition Rate		Puls Output		Trigger Output	Data Sheet
	min	max	internal	external	Amplitude	Connector
PG 40p-100n	40 ps	100 ns	1 MHz ... 1 Hz, single	≤ 1 MHz	-5V and +5V	50 Ω 2,92mm	CML

The comb generators generate output pulses with a maximum repetition rate of 2.56GHz. An external clock signal between 480MHz and 2.56GHz is needed to provide the time base for operation. Two different operation modes are available, that can be selected via the instruments USB-interface:

In frequency divider mode the instrument generates output pulses according to the input clock frequency divided by one of the dividers /1, /2, /4, /8, /16, /32, /64 , /128, /256 or /512.

In PRBS mode pulses are generated according to the pseudo random binary sequence of length 2ⁿ-1 with n= 4, 5, 6, 7, 8, 9, 10 or 11.

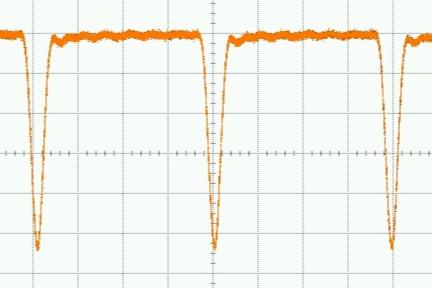

The comb generators provide short negative output pulses with pulse widthes down to ≤20ps and minimal phase variation.

Type	Input Frequency		Mode		Puls Output			Data Sheet
	min	max	Divider /n	PRBS 2n-1	Amplitude	Pulse Width	Connector
PG 6	1 GHz	2 GHz	n= 1, 2, 4, 8, 16, 32, 64, 128, 256, 512	n= 4, 5, 6, 7, 8, 9, 10, 11	-0,4V	≤ 100 ps	50 Ω SMA
PG 10	480 MHz	2,56 GHz	n= 1, 2, 4, 8, 16, 32, 64, 128, 256, 512	n= 4, 5, 6, 7, 8, 9, 10, 11	-0,3V...-0,5V	≤ 35 ps	50 Ω 2,92mm
PG 40	480 MHz	2,56 GHz	n= 1, 2, 4, 8, 16, 32, 64, 128, 256, 512	n= 4, 5, 6, 7, 8, 9, 10, 11	-0,3V...-0,5V	≤ 20 ps	50 Ω 1,85mm

Other configurations available on request. Please do not hesitate to contact us!
